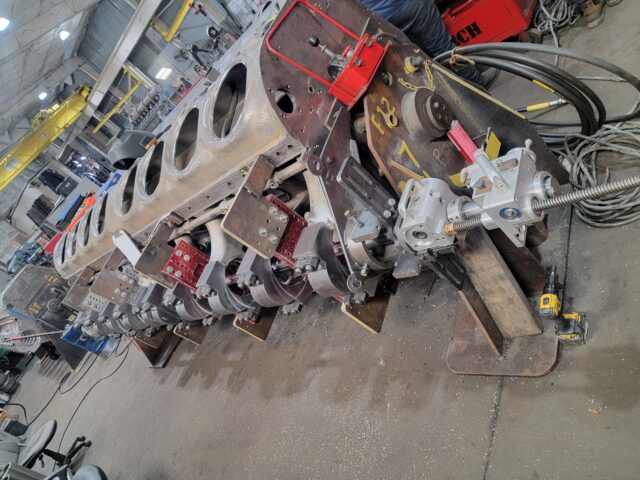

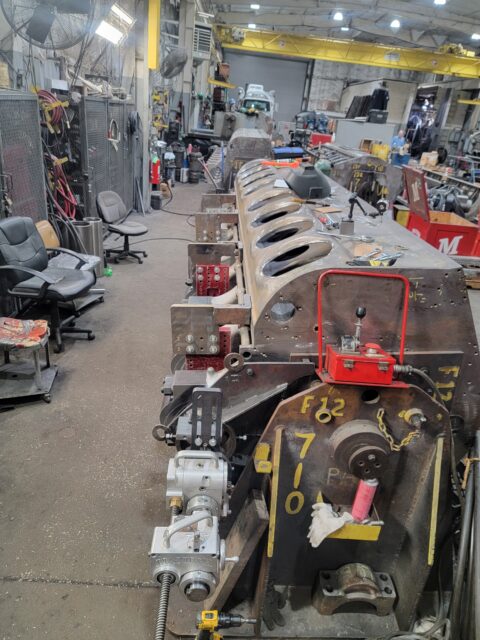

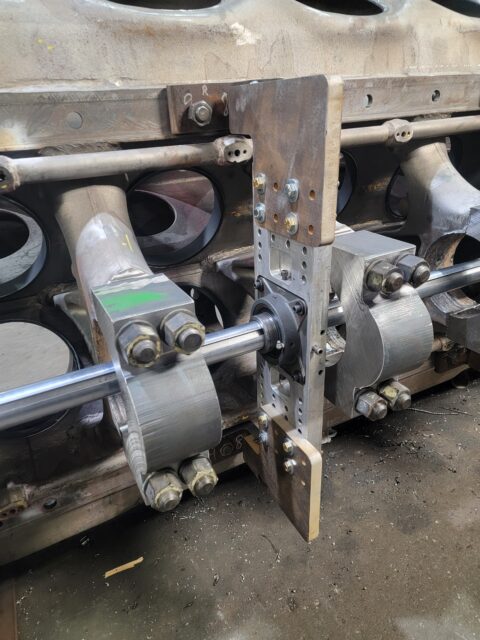

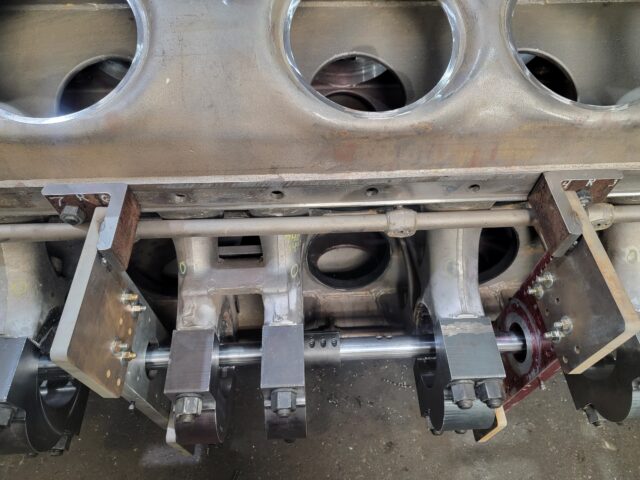

When most people look at a large engine frame that needs machining, the default answer is simple: Send it to a machine shop. But when that “engine frame” weighs tens of thousands of pounds and is tied into critical operations… that answer gets a lot more complicated. That’s where on-site line boring comes in. Instead of moving the machine, you bring the machining capability to it. And that’s exactly what our team recently did on a large engine frame requiring precision alignment of its main crank bores. The Challenge: Engine Frame Machining Without Drawings This project came with a twist… there were no complete dimensional drawings available. That meant everything had to be built around: Existing geometry Datum points on the machine Real-world measurements taken on-site No “plug and play” setup. No perfect prints to follow. Just experienced machinists, portable equipment, and a plan. The Solution: On-Site Line Boring with Custom Setup To complete the job, our team designed and executed a dual-bar line boring setup directly on the engine frame. Here’s how it came together: Custom Setup and Fixturing Installed two boring bars through the main crank bores Built out double-arm bridge supports mounted to the oil pan surface Utilized angle plates and custom extension plates to reach required mounting points Created mounting solutions for the ends of the engine frame using existing structures where possible This wasn’t off-the-shelf… it was built specifically for this machine. Precision Alignment to Datum Points Once the setup was in place: Bars were rough-positioned using setup spiders Full setup was assembled with bridges and supports Final alignment was dialed in using existing datum references This step is where experience matters most… because alignment drives everything that follows. Line Boring Operations With alignment complete, the team moved into machining: Machined reference bores first Verified alignment across the setup Completed machining of the remaining crank bores All performed in place, without removing the engine frame from the facility. Added Value: Training While Machining This project also included on-site training and setup support. Instead of just completing the work and leaving, our technician worked alongside the customer’s team to: Walk through proper setup techniques Demonstrate alignment processes Support machining operations step-by-step Because sometimes the best long-term solution isn’t just doing the job… …it’s helping your team understand how it gets done. Why On-Site Line Boring Matters Projects like this highlight the real advantage of portable line boring services: No need to transport massive components Reduced downtime Machining performed in the machine’s true operating position Ability to work around incomplete or legacy documentation And most importantly… It allows critical equipment to be restored quickly and accurately, without disrupting operations more than necessary. The Bottom Line Line boring an engine frame in a controlled shop environment is one thing. But walking into a facility, building a custom setup from scratch, aligning to real-world conditions, and machining it back into spec… That’s where skilled field machinists make the difference. At the end of the day, portable machining equipment is just a tool. The real value comes from the people who know how to use it. Dual-bar line boring setup mounted directly to engine frame Custom bridge supports and fixturing used for alignment Precision alignment to existing datum points prior to machining In-process line boring of main crank bores
