(Cutting sizes: 40” and 60”)

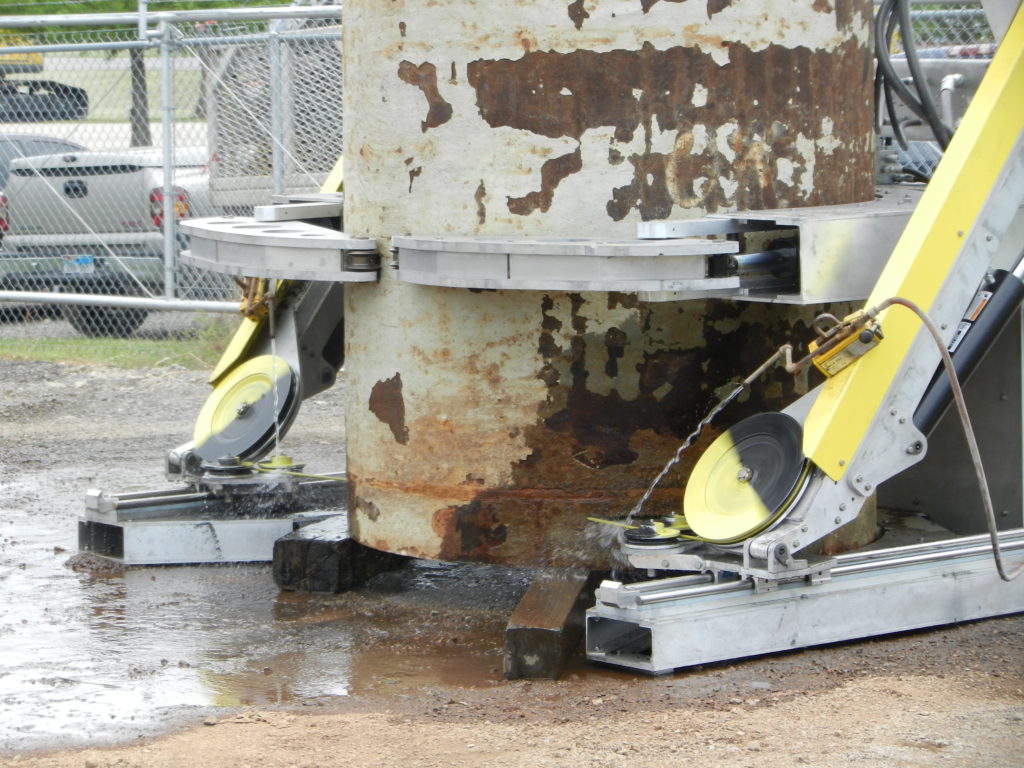

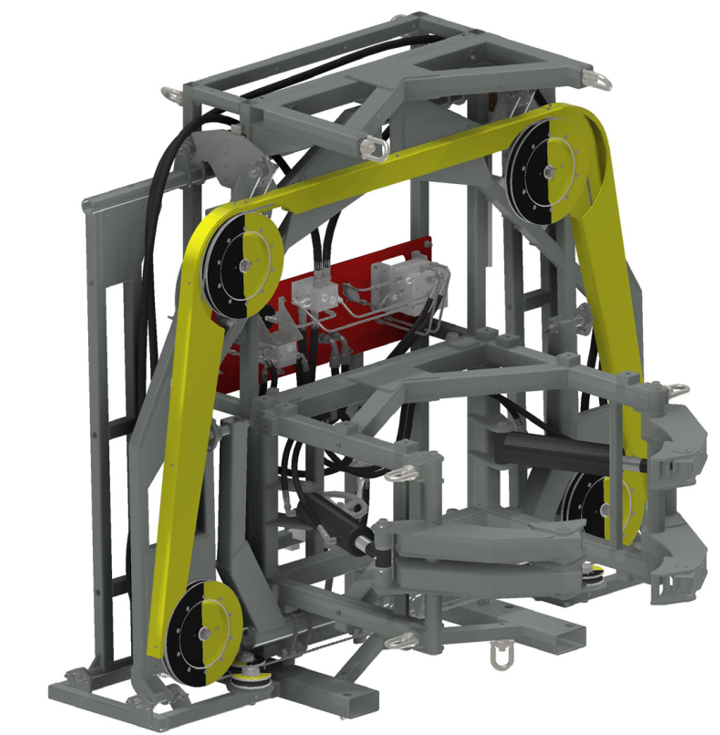

Our portable articulating diamond wire saw was built for tough cuts in hard-to-reach places. With low axial clearance and vertical stance, it slides right into excavations or coffer dams with minimal dredging required. Suits multi-string applications and just needs 2 feet of clearance to get to work.

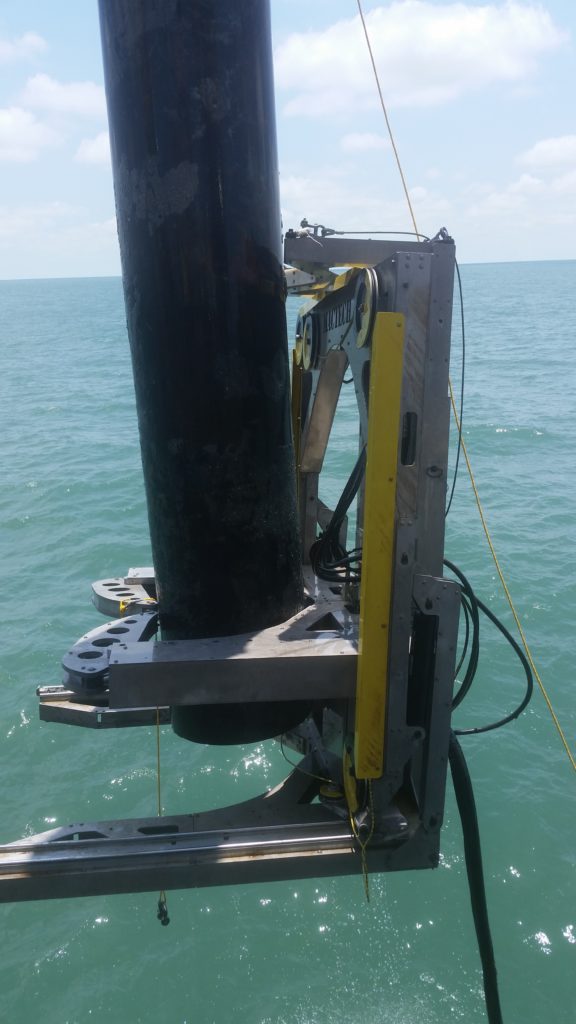

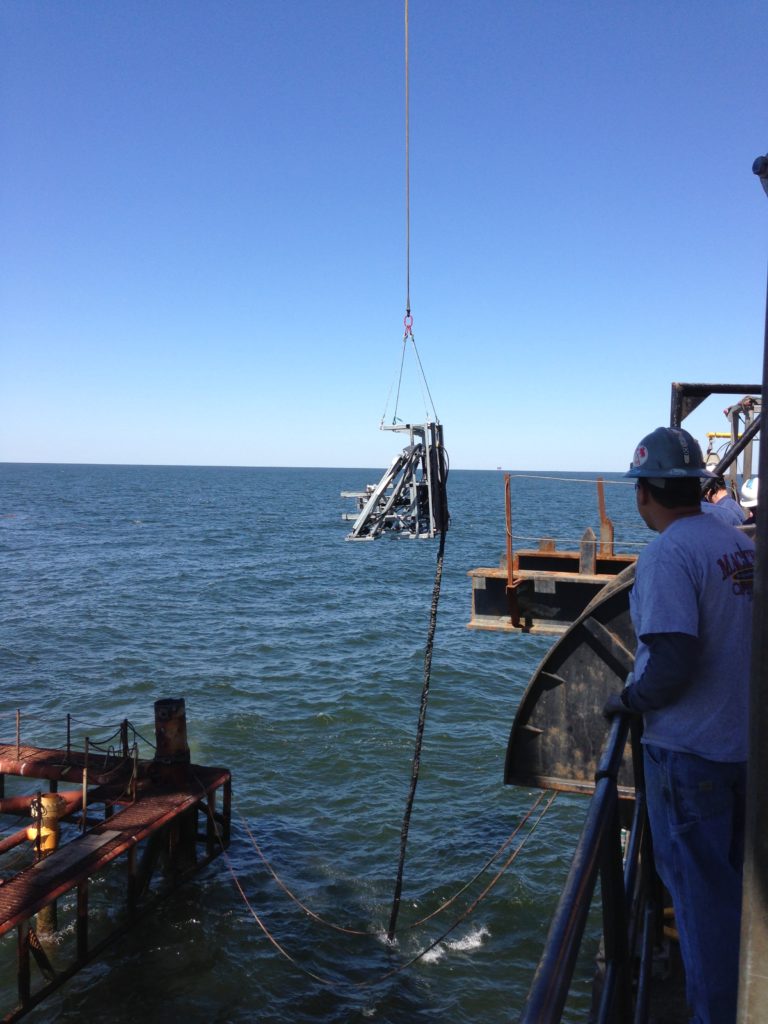

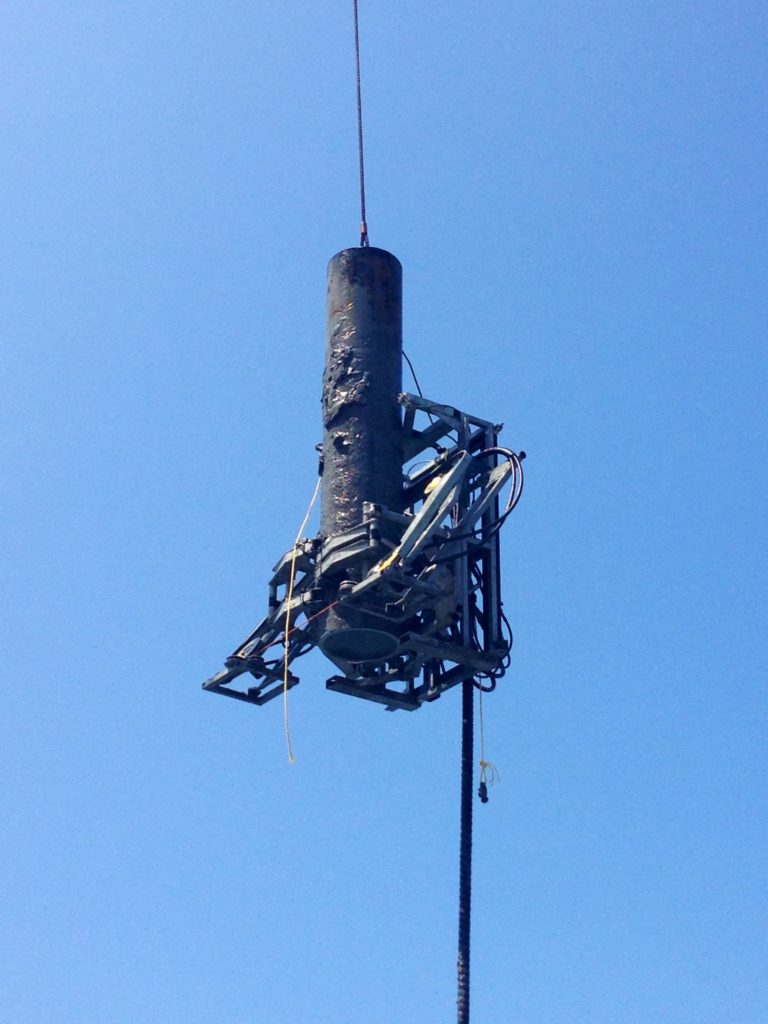

When you’re working below the marine mudline, this articulating saw has you covered. Designed for low-clearance cuts in tight spots, it saves time by cutting the need for excavation and dredging. With a cutting range of 22” to 60” and a purpose-built design, it’s the go-to tool for heavy wall legs, cross members, tricky conductor removals and subsea cutting jobs.
Cutting Capacity
Ø 22” – Ø 40” (Ø 508 – Ø 1016mm)
Ø 26” – Ø 60” (Ø 660 – Ø 1524mm)
Operating Dimensions
67” x 105” x 86” (1702 x 2667 x 2184mm)
113” x 109” x 128” (2870 x 2769 x 3251mm)
Operating Weight (Dry)
2140 lbs / 1161kg
3275 lbs / 1485kg
Operating Weight (Wet)
1790lbs / 812kg
2158lbs / 980kg
Drive: Hydraulic Requirements
15 gpm @ 3000 psi
57 lpm @ 207 bar
40 gpm @ 3000 psi
151 lpm @ 207 bar
Feed: Hydraulic Requirements
.5 gpm @ 500 psi
2 lpm @ 34 bar
.5 gpm @ 1500 psi
2 lpm @ 103 bar
Clamp: Hydraulic Requirements
