In-line diamond wire saws

(30” to 120” cuts — ROV friendly!)
(Sale pricing: $90,750-$396,500+)

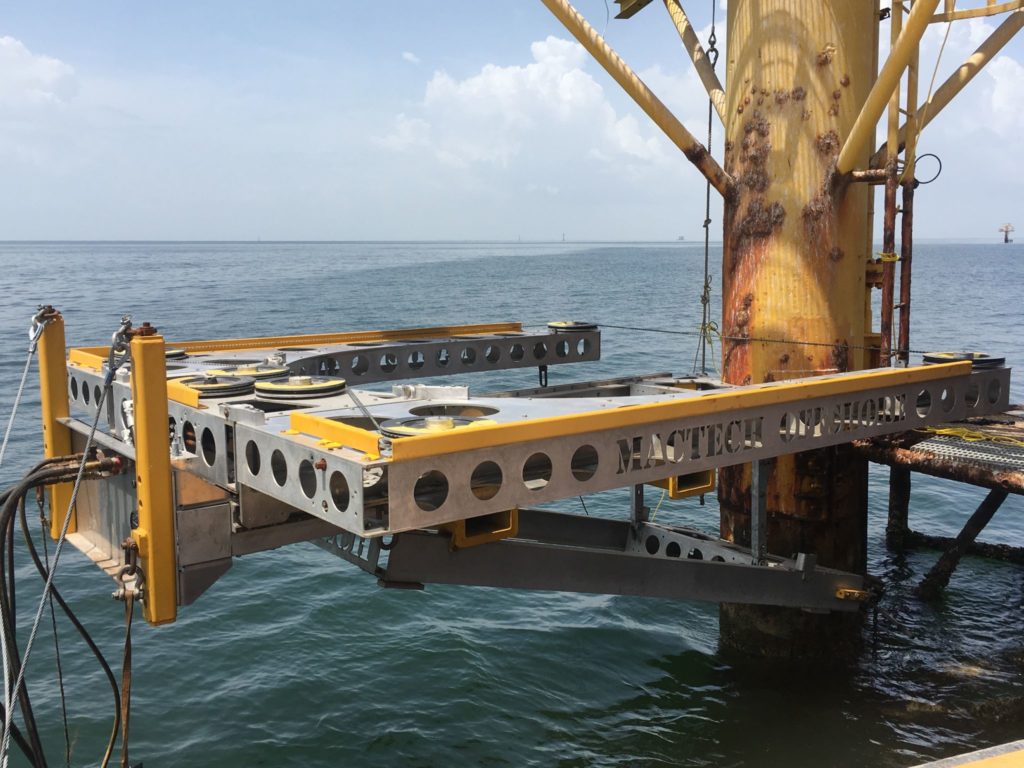

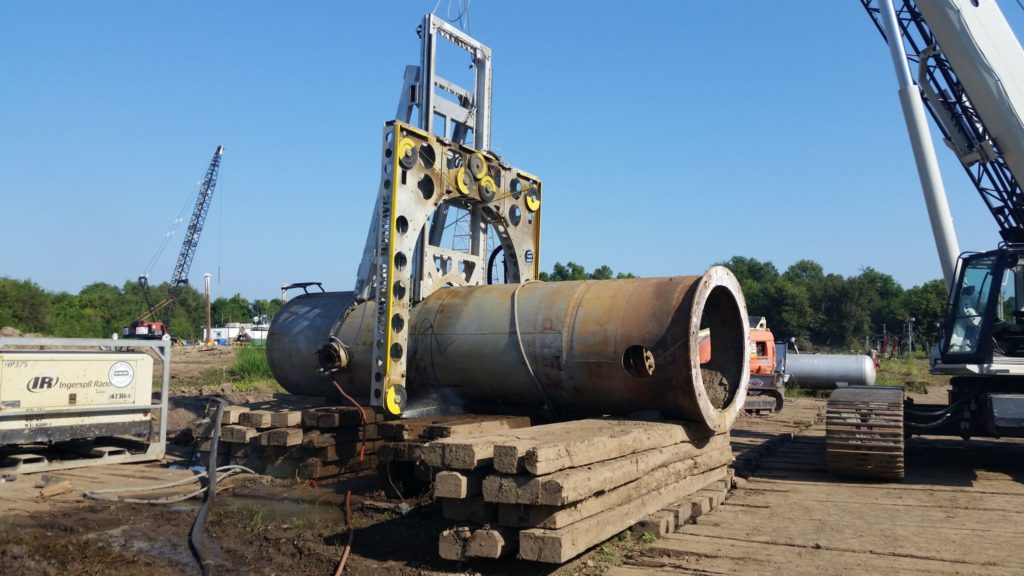

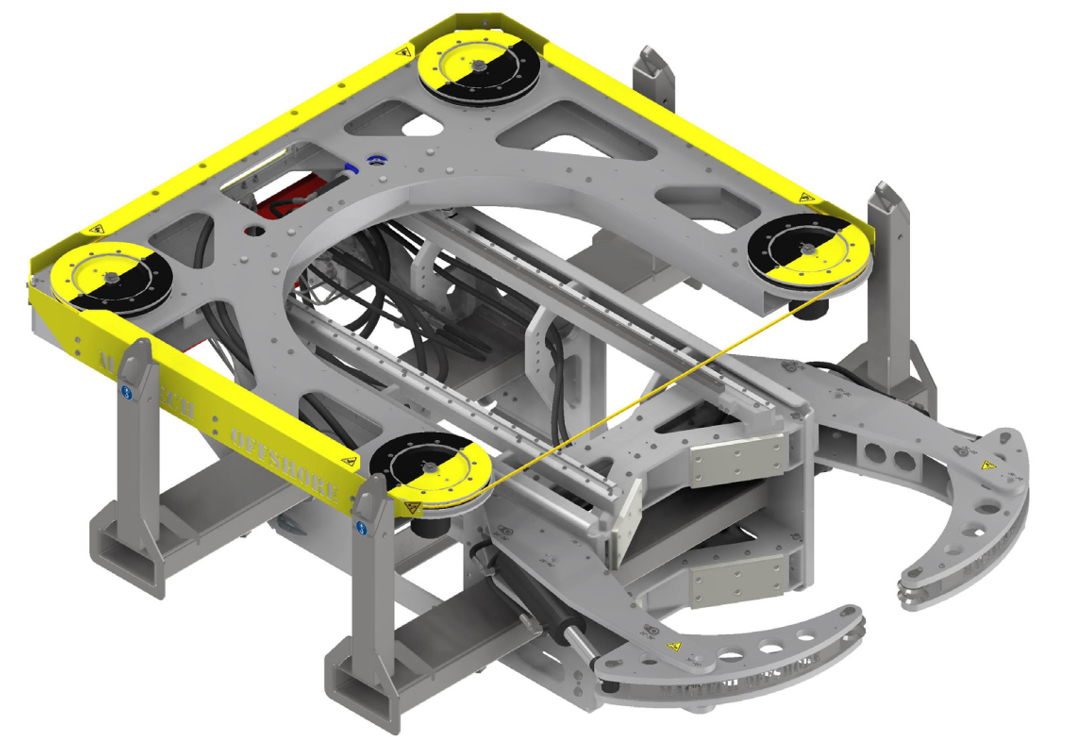

Our portable in-line diamond wire saws boast the industry’s largest cutting range and a compact design. These can be customized to meet your marine and subsea cutting needs, and their small footprint won’t hog valuable deck space.

Purchase price depends on size and accessory options. And if you’re curious about renting, read this.

Maximum efficiency, zero fuss

Tight deadlines? Tight spaces? Our portable in-line diamond wire saws are all about getting you back on track fast. They’re quick to install, easy to use and built for tough cuts. You’ll keep downtime to a minimum and save money on every job. Suited for a wide variety of applications.

Key Features

Available in cutting sizes from 30" to 120" for maximum flexibility in any project

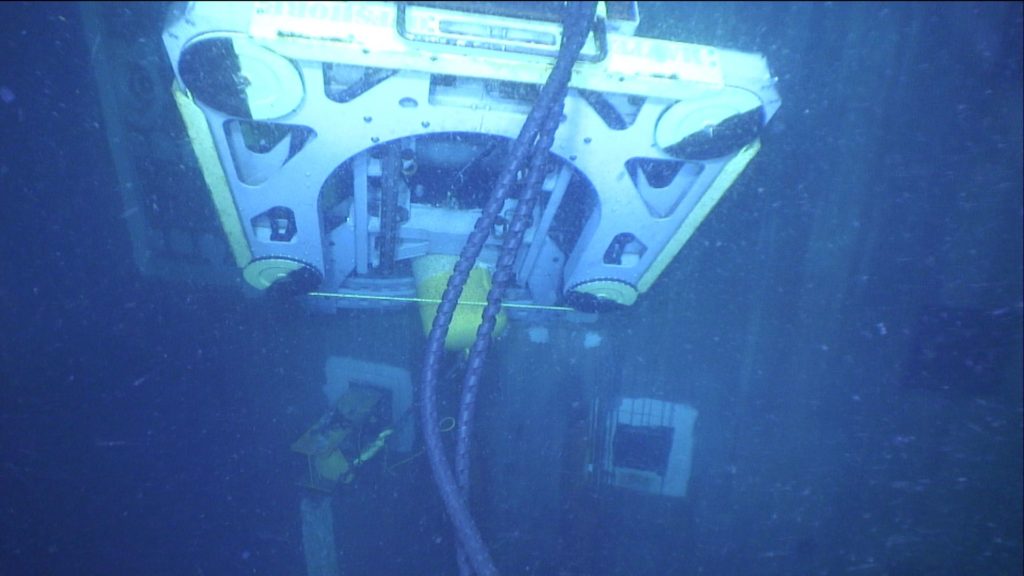

ROV versions are available for safe, precise underwater operations
Compact, space-saving design that fits into tight workspaces
Customizable saws to suit specific project requirements
Quick setup, installation and removal saves time and costs

DWS-30i-AF-SS (0607-0132-SS)

DWS-30i-ROV (0607-0443)

DWS-48i-AF-SS (0607-0209, 607-0505)

DWS-48i-ROV-SS (0607-0323)

DWS-60i-AF-SS (0607-0004)

DWS-84i-AF-SS (607-0161)

DWS-102i-AF-SS (607-0301)

DWS-120i-AF-SS (607-0329)

DWS-120i-AF-SS (607-0331)

DWS-120i-AF-SS (607-0329 w/ 607-0457)

Cutting Capacity

Ø 14” – Ø 30” (Ø 356 – Ø 762mm)

Ø 20” – Ø 48” (Ø 508 – Ø 1219mm)

Ø 26” – Ø 60” (Ø 660 – Ø 1524mm)

Ø 36” – Ø 84” (Ø 914 – Ø 2134mm)

Ø 48” – Ø 102” (Ø 1016 – Ø 2591mm)

Ø 48” – Ø 120” (Ø 1219 – Ø 3048mm)

Ø 84” – Ø 120” (Ø 2134 – Ø 3048mm)

Ø 91” – Ø 120” (Ø 2311 – Ø 3048mm)

Operating Dimensions

94” x 64” x 40” (2388 x 1626 x 1016mm)

107” x 102” x 40” (2208 x 2588 x 1013mm)

134” x 94” x 43” (3403 x 2387 x 1092mm)

139” x 124” x 38” (3525 x 3150 x 968mm)

182” x 98” x 55” (4622 x 2489 x 1397mm)

237” x 144” x 79” (6031 x 3661 x 1998mm)

175” x 140” x 78” (4445 x 3556 x 1981mm)

203” x 158” x 83” (5156 x 4013 x 2108mm)

332” x 181” x 61” (8422 x 4598 x 1538mm)

338” x 173” x 86” (8595 x 4394 x 2172mm)

Operating Weight (Dry)

950 lbs / 431kg

2405 lbs / 1088kg

2150 lbs / 975kg

4500 lbs / 2041kg

2600 lbs / 1180kg

4300 lbs / 1950kg

3100 lbs / 1406kg

3500 lbs / 1587kg

6850 lbs / 3108kg

6856 lbs / 3110kg

Operating Weight (Wet)

696lbs / 315kg

223lbs / 101kg

1600lbs / 726kg

20lbs / 9kg

1785lbs / 810kg

3000lbs / 1360kg

2100lbs / 953kg

2400lbs / 1088kg

4850lbs / 2200kg

4674lbs / 2120kg

Drive: Hydraulic Requirements

15 gpm @ 3000 psi

57 lpm @ 207 bar

15 gpm @ 3000 psi

57 lpm @ 207 bar

15 gpm @ 3000 psi

57 lpm @ 207 bar

15 gpm @ 3000 psi

57 lpm @ 207 bar

15 gpm @ 3000 psi

57 lpm @ 207 bar

40 gpm @ 3000 psi

151 lpm @ 207 bar

40 gpm @ 3000 psi

151 lpm @ 207 bar

40 gpm @ 3000 psi

151 lpm @ 207 bar

40 gpm @ 3000 psi

151 lpm @ 207 bar

40 gpm @ 3000 psi

151 lpm @ 207 bar

Feed: Hydraulic Requirements

.5 gpm @ 650 psi

2 lpm @ 49 bar

.5 gpm @ 650 psi

2 lpm @ 49 bar

.5 gpm @ 650 psi

2 lpm @ 49 bar

.5 gpm @ 650 psi

2 lpm @ 49 bar

.5 gpm @ 1000 psi

2 lpm @ 69 bar

.5 gpm @ 1000 psi

2 lpm @ 69 bar

.5 gpm @ 1000 psi

2 lpm @ 69 bar

.5 gpm @ 1000 psi

2 lpm @ 69 bar

.5 gpm @ 1000 psi

2 lpm @ 69 bar

.5 gpm @ 1000 psi

2 lpm @ 69 bar

Clamp: Hydraulic Requirements

.5 gpm @ 1500 psi

2 lpm @ 103 bar

.5 gpm @ 1500 psi

2 lpm @ 103 bar

.5 gpm @ 1500 psi

2 lpm @ 103 bar

.5 gpm @ 1500 psi

2 lpm @ 103 bar

.5 gpm @ 1500 psi

2 lpm @ 103 bar

.5 gpm @ 1500 psi

2 lpm @ 103 bar

N/A

.5 gpm @ 1500 psi

2 lpm @ 103 bar

5 gpm @ 850 psi

19 lpm @ 103 bar
