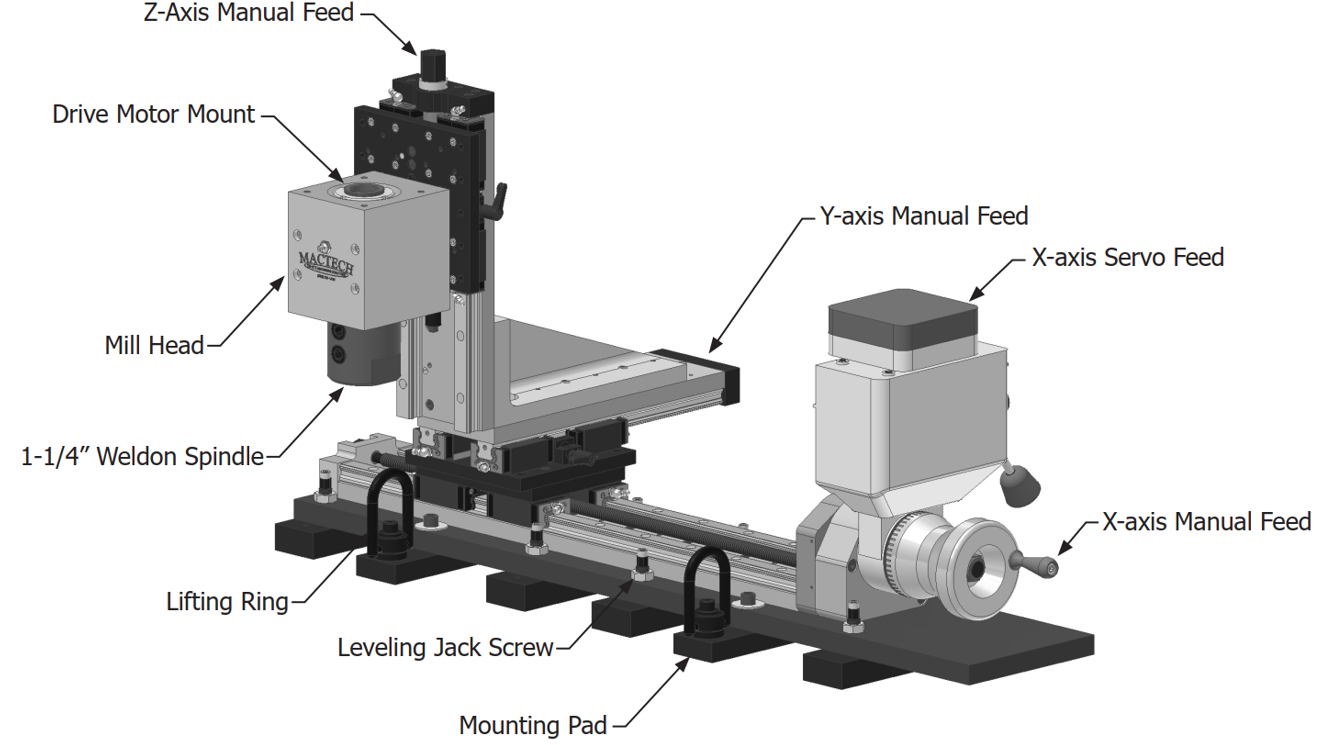

4” linear rail portable milling machine
For large repair work where dismantling is not practical, you need the Mactech MT4 LRA Portable Milling Machine. This 3-axis, linear rail mill is capable of close tolerance milling, drilling, boring and many other on-site operations. No job is too big when you’re got the MT4 LRA at your side.
Whatever the task, the MT4 is up for the job. Attach it any way you need — weld, clamp, bolt or magnetically — at any angle. With a reversible Y-Z axis and a mill head that flips for overhead work, this machine adapts to every task you’ve got on your list.
X-Axis Travel
16.5”
(420mm)
28.5”
(724mm)
64.5”
(1628mm)
Bed Length
24”
(610mm)
36”
(914mm)
72”
(1829mm)
Y-Axis Travel
5.5”
(140mm)
Overall Length
35.125”
(892mm)
47.125”
(1197mm)
83.125”
(2111mm)
Package Number
605-6903
605-6878
605-6876
