Available in four lengths: 48, 72, 96 and 120 inches

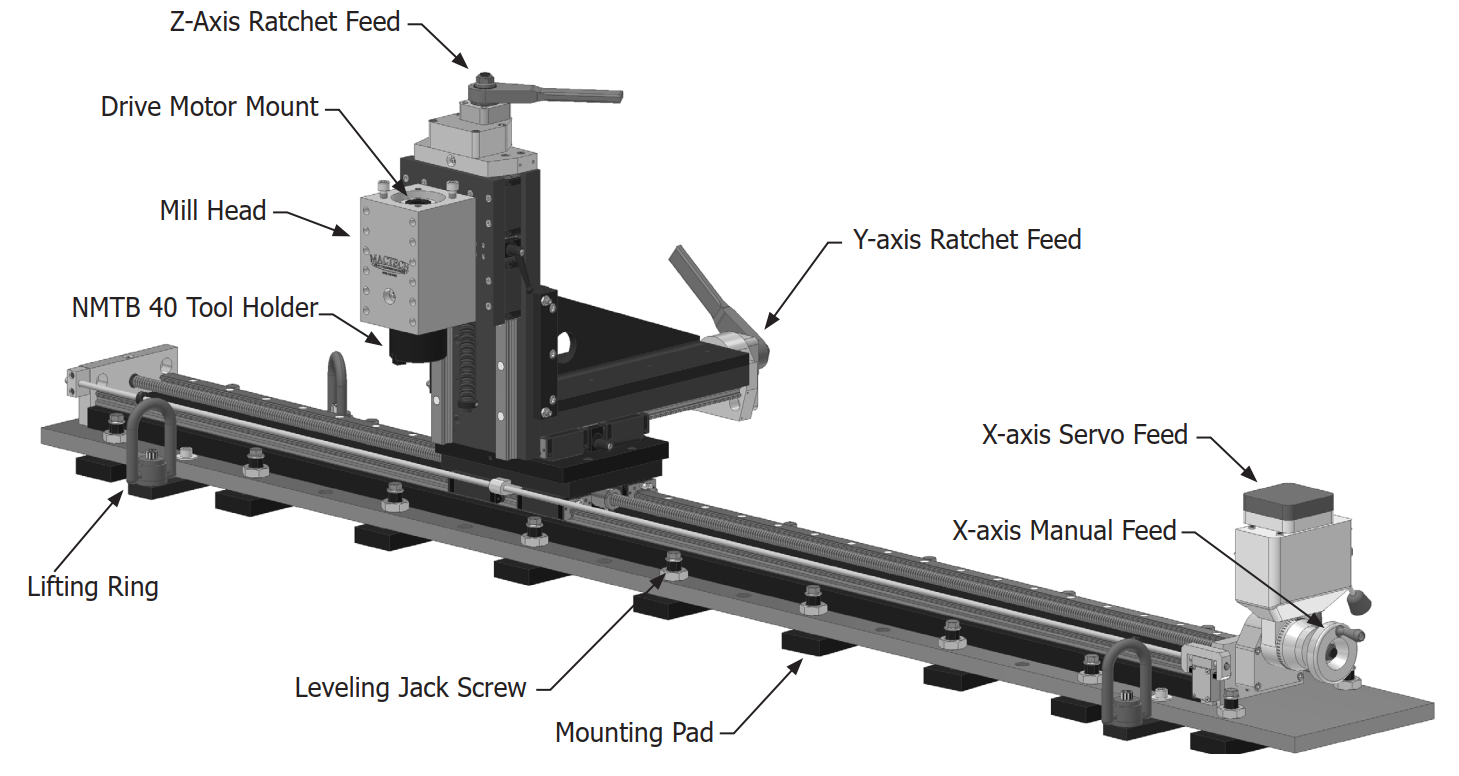

With its 3-axis linear rail system, this portable milling machine delivers precise milling, drilling and boring — even in large area repairs where moving the workpiece can’t be done. Whether welded, bolted, clamped or magnetically attached, the MT8 can be oriented in any direction to get the job done.
The MT8 can be welded, clamped, bolted, or magnetically attached directly to the workpiece in any orientation. The Y-Z axis can be assembled on either side of the X-axis, and the mill head is flippable for overhead milling — letting you work in any situation without machine limits.
X-Axis Travel
36”
(914mm)
60”
(1524mm)
84”
(2133mm)
108”
(2743mm)
Bed Length
48”
(1168mm)
72”
(1829mm)
96”
(2438mm)
120”
(3048mm)
Y-Axis Travel
8.5”
(216mm)
Overall Length
132”
(3353mm)
Package Number
605-5218
605-5224
605-5217
605-5221
