Internal diameter end mill cutting machine

Cuts 33-60” inside diameter pipe

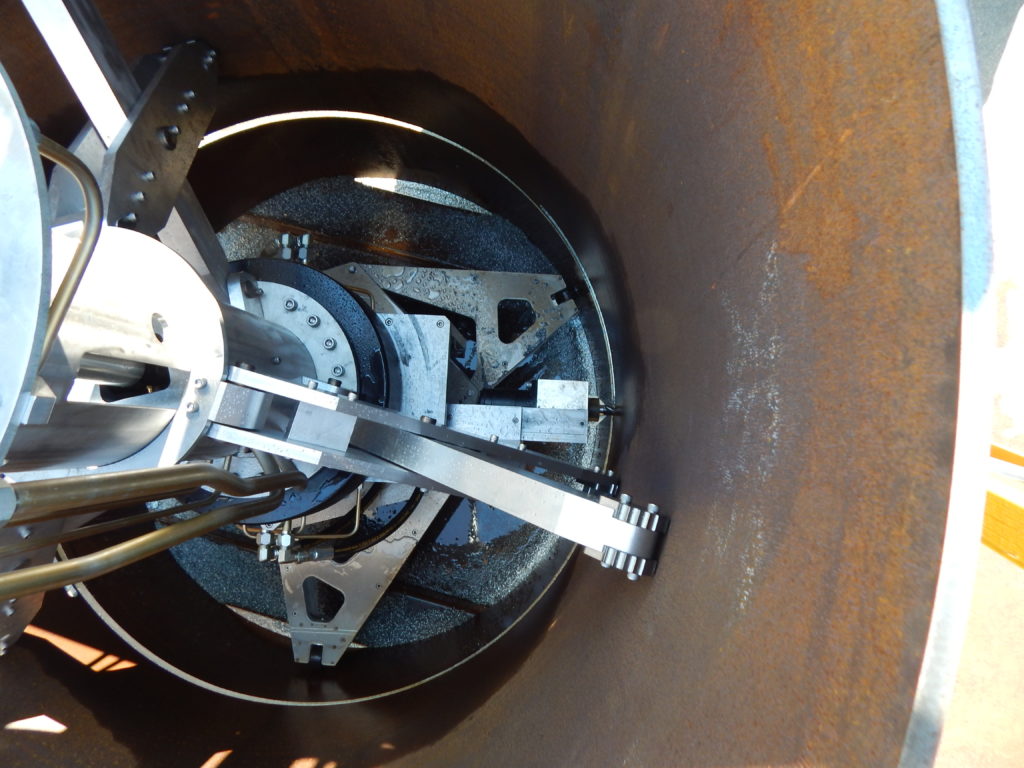

The ID portable end mill machine uses a self-centering mechanism and clamps to lock it into place for precise, clean cuts every time. No more dredging around subsea structures. No more excavating work sites. Just lower it in, activate and start cutting.

features
Brochure and Spec Sheets
Specifications

Your solution to limited access, round tube severing

Just because you’re cutting tough materials in tough spots shouldn’t automatically mean wasting time and money. This simple setup helps you skip excavation and costly delays so that you can get straight to work. With this portable end mill, you’ll get the job done right, twice as fast and with way less hassle.

Key Features

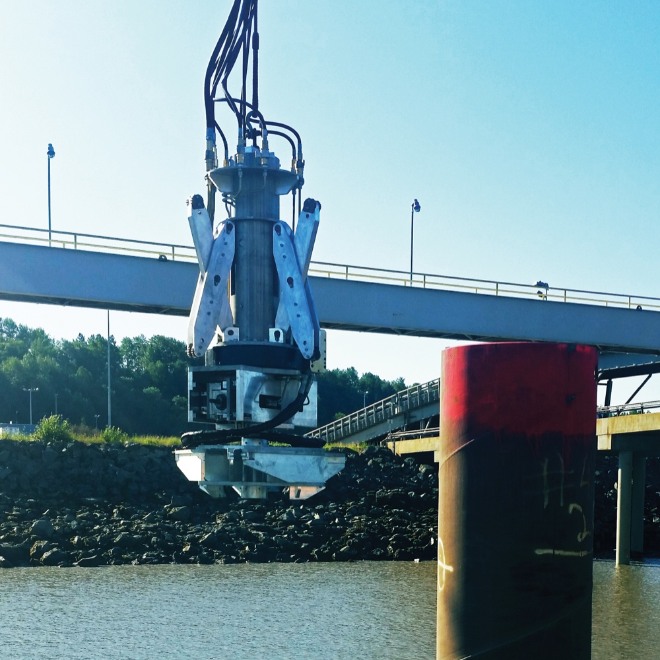

  • Cold cut pilings, casings or other round, hollow tube
  • Dual End Mills reduce cut time by half
  • Inside diameter cutting eliminates the need for subsea dredging around casings

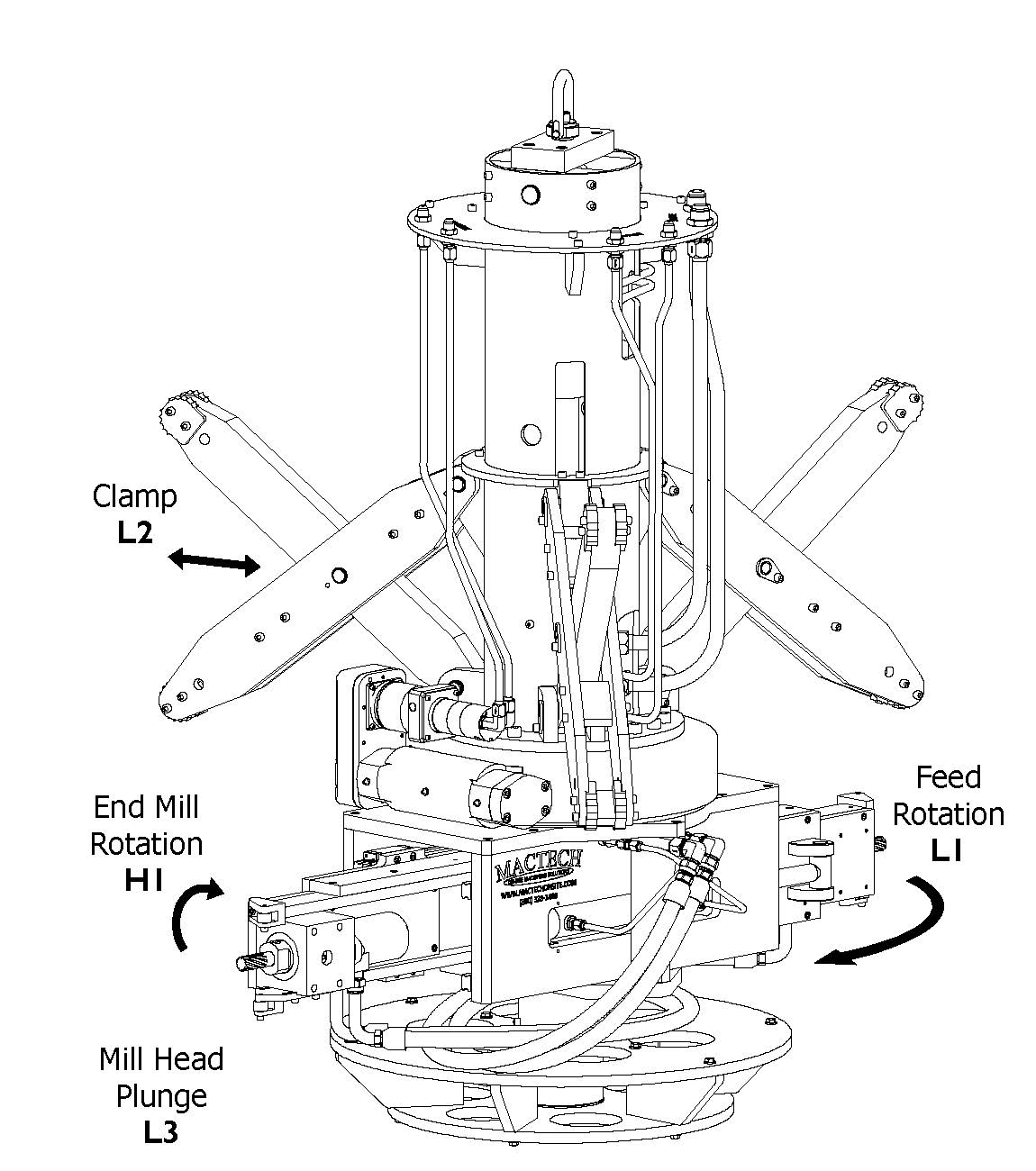

  • Self-centering mechanism makes setup quick and easy
  • Uses standard 1-inch end mill

Brochure and Spec Sheets

ID Milling Machine 33"-60" Spec Sheet

ID Milling Machine Specifications

ID Milling Machine 17-33" ID Milling Machine 33-60"

Pipe Diameter Range

17″-33″

(432-838mm)

33″-60″

(838-1524mm)

Max Wall Thickness

1.5″

(38mm)

1.5″

(38mm)

Height

41”

(1041mm)

74.4″

(1890mm)

Weight

342lbs

1140lbs
