Portable Milling Compressor Mounting Pads: When .015 Inch Matters



Fifteen thousandths of an inch doesn’t sound like much.

On a compressor foundation, it can be a pretty big problem.

Mactech was recently called to a greenfield construction project where two identical compressor units needed some help before installation could move forward. Each compressor sat on four machined mounting pads, but the horizontal mounting surfaces weren’t parallel to one another or sitting in the same plane.

The customer had already done some homework. Machinist levels showed slope across the individual pads, and with the compressor sitting directly on the mounting surfaces, feeler gauges found gaps measuring as much as .013″.

The solution wasn’t to start stacking more shims.

It was to machine the foundation correctly.

Portable milling in action as Mactech corrects compressor mounting surfaces on-site.

Eight Pads. One Common Plane.

Across the two compressor units, there were eight mounting pads in total:

  • Four mounting pads per compressor
  • Each pad measured approximately 13″ × 17″
  • Overall mounting footprint was approximately 53-1/2″ × 49-9/16″
  • Estimated material removal was approximately .015″

The finished requirement called for each mounting surface to be machined within .001″ per 12″ flatness, with mounting surfaces in the same horizontal plane held within .010″.

That created an application where machining was only half the job.

Before we could cut anything, we needed to know exactly where everything was.

Measure First. Machine Second.

Our crew combined laser measurement and portable milling to create a complete on-site solution.

The first step was using a laser tracker to survey the compressor base and establish the planes and datums that would guide the machining process.

Rather than relying solely on individual measurements from each pad, the laser tracker gave our technicians a common reference across the entire mounting footprint.

With that data established, the portable milling machine could be positioned and aligned to the required machining plane.

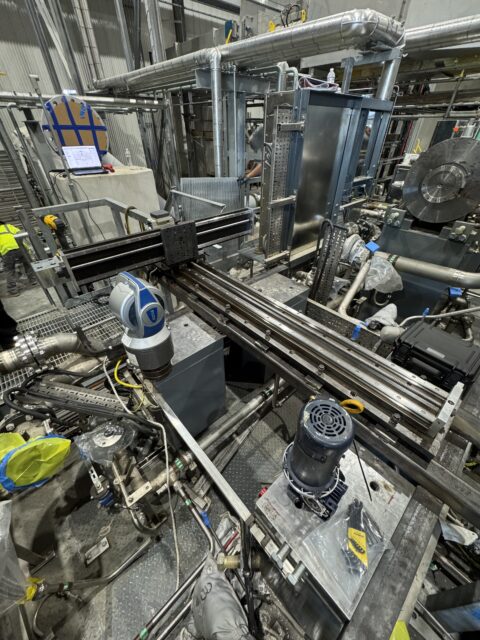

Mactech technicians using a laser tracker to establish the machining plane on compressor mounting pads

Measure first. Machine second. Laser measurement establishes a common datum before the portable mill starts cutting.

This is where laser metrology and field machining work especially well together.

Measure the actual condition. Establish the correct plane. Align the machine to the data. Then cut only what needs to be cut.

Bringing the Milling Machine to the Compressor

Sending a compressor foundation to the machine shop obviously wasn’t an option.

So we brought the machine shop to it.

Mactech mobilized an MT8 portable milling machine, laser tracker, tooling and field technicians directly to the site.

The compressor itself had been removed, giving our crew access to the mounting pads, but the surrounding equipment, piping and structure still made this very much a field machining job.

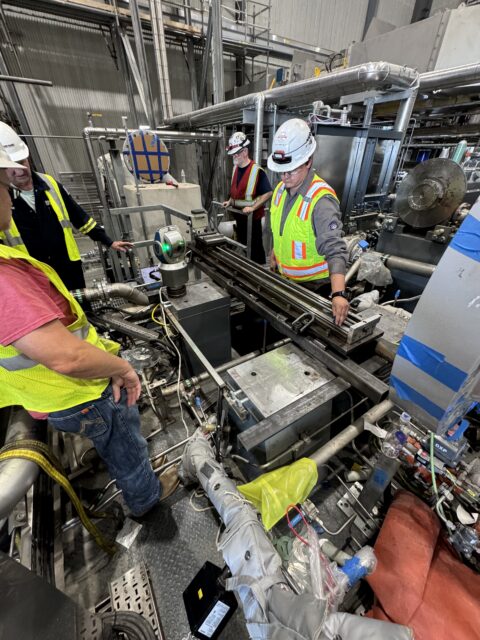

Portable milling machine set up across compressor base mounting pads for on-site machinin

The portable mill is fixtured directly across the compressor foundation and aligned to the laser measurement data.

Our technicians fixtured the mill across the foundation and aligned the machine using the laser survey data.

Once everything was indicated, aligned and verified, machining could begin.

Approximately .015″ of material needed to be removed from the mounting surfaces to bring the pads into the required plane.

That is the interesting thing about precision field machining:

Sometimes the machine is enormous. The problem is only a few thousandths.

Machining the Compressor Mounting Pads In Place

With the portable mill positioned and aligned, our crew skim-machined each 13″ × 17″ mounting surface.

The objective wasn’t simply to make each individual pad look flat. All four mounting locations needed to work together as a common foundation for the compressor.

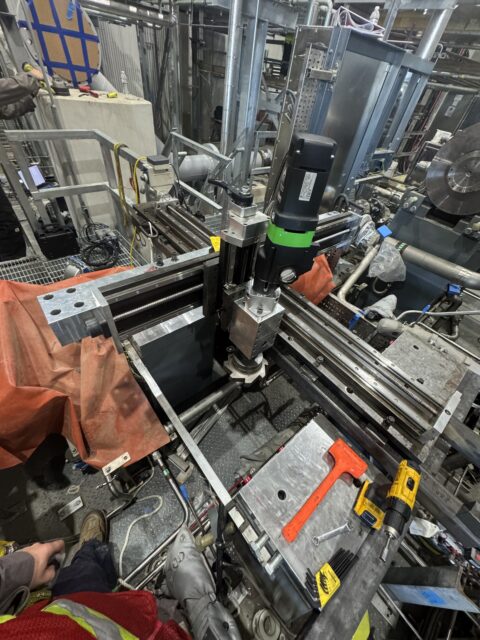

Portable milling machine positioned to machine a compressor mounting pad on-site

Roughly .015″ needed to come off the mounting surfaces. Not much material—but plenty when the pads aren’t sharing the same plane.

After completing the four pads on the first compressor base, the equipment was repositioned and the process repeated on the second identical unit.

In total:

2 compressor foundations.
8 mounting pads.
Approximately .015″ of correction.
One controlled machining plane.

And no need to remove the foundation or attempt to solve the problem through excessive shimming.

Verify the Work Before the Compressor Goes Back

Precision machining shouldn’t end when the chips stop flying.

After machining, the laser tracker can be used again to perform a final survey of the mounting surfaces and document the finished condition.

That closes the loop between measurement, machining and verification.

For critical rotating equipment installations, that matters.

Properly machined mounting surfaces can help provide a better foundation for equipment installation and alignment while eliminating uncertainty about the geometry underneath the machine.

Portable Milling Is Built for Problems Like This

Large equipment foundations, motor bases, compressor pads and other installed structures don’t always arrive exactly where the drawing says they should.

And sometimes you don’t discover that until the equipment is already on site and the construction schedule is moving.

That’s where portable machining earns its keep.

Instead of trying to work around an out-of-tolerance surface, Mactech can bring precision machining equipment directly to the component.

Our portable milling capabilities can be used for applications including:

  • Compressor and motor mounting pads
  • Equipment base plates and foundations
  • Bearing and machinery mounting surfaces
  • Large structural weldments
  • Platen and press surfaces
  • Keyways and localized milling
  • Large-area precision milling
  • Custom field machining applications

Combine that equipment with laser measurement and inspection, and we can establish the existing condition, align our machining equipment to a known datum, make the required corrections and verify the finished result.

A Few Thousandths Can Make a Big Difference

This project didn’t require removing inches of material.

It required removing roughly .015″ in the right places.

That’s field machining.

Big equipment. Tight spaces. Tight tolerances.

And occasionally, a very small cut solving a very big problem.


FAQ on Portable Milling

Can compressor mounting pads be machined on-site?
Yes. Portable milling equipment can be fixtured directly to or around an installed foundation, allowing mounting surfaces to be machined without transporting the entire structure to a machine shop.

How do you align a portable milling machine to multiple mounting pads?
For applications requiring multiple surfaces to share a common plane, laser measurement can establish datums and provide dimensional information used to align the portable machining equipment.

Can portable milling correct an uneven equipment base plate?
Depending on access, geometry, material and required tolerances, portable milling can be used to correct equipment foundations, base plates, motor mounts and other large mounting surfaces in the field.

Why machine mounting pads instead of adding shims?
Shims are commonly used during equipment installation and alignment, but machining may be required when the underlying mounting surfaces themselves do not meet the specified flatness or coplanarity requirements.
