Industrial laser measurement equipment
From warped ends to uneven wall thickness, pipes aren’t always perfect. But instead of waiting on legacy pipe-end dimensioning service providers, Mactech’s PEMS lets you take charge of your own project timeline. Get major ROI at just 1/10th of the cost of third-party services.
Purchase price depends on size and accessory options. And if you’re curious about renting, read this.
Sale pricing: $72,100

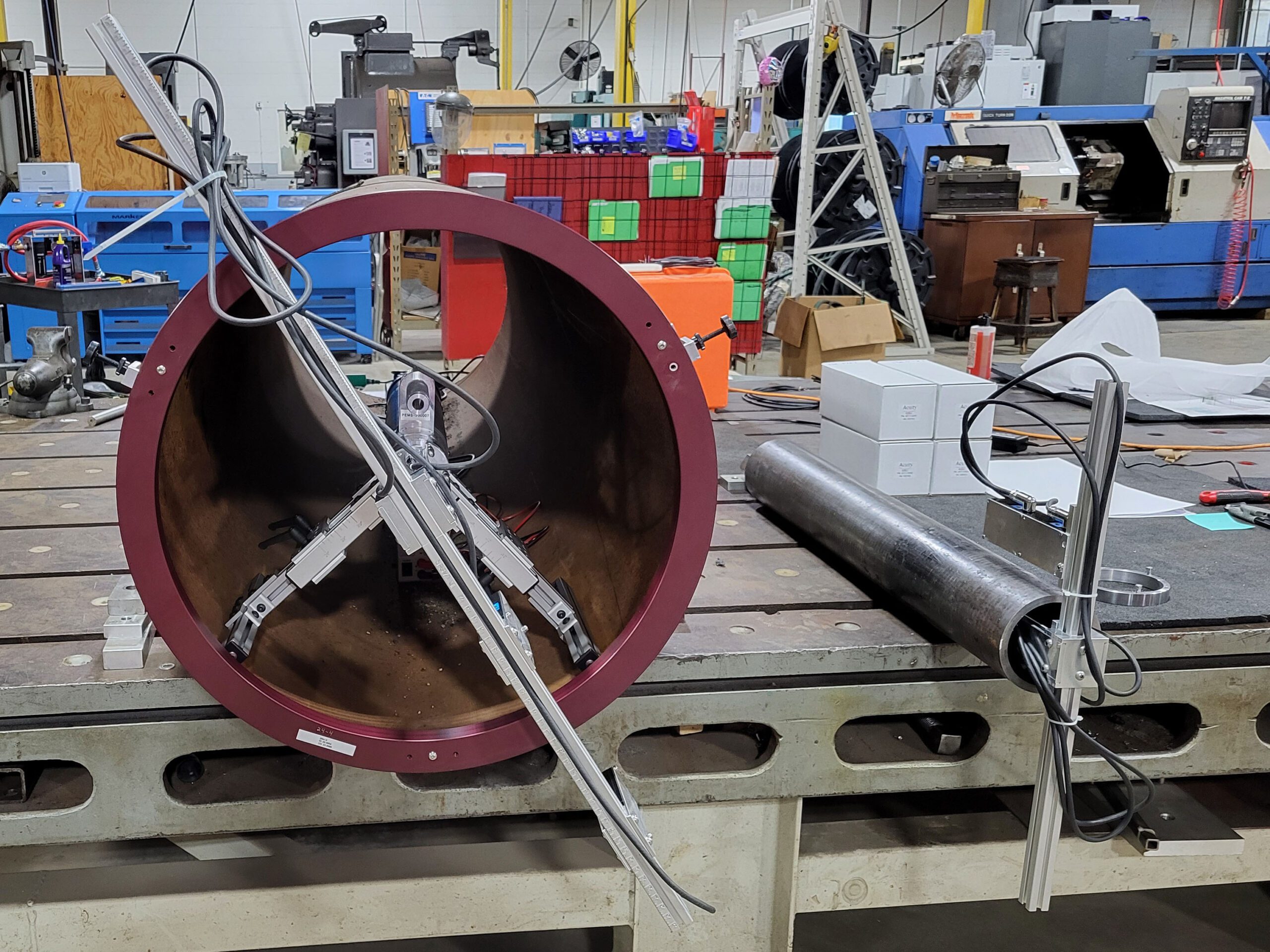

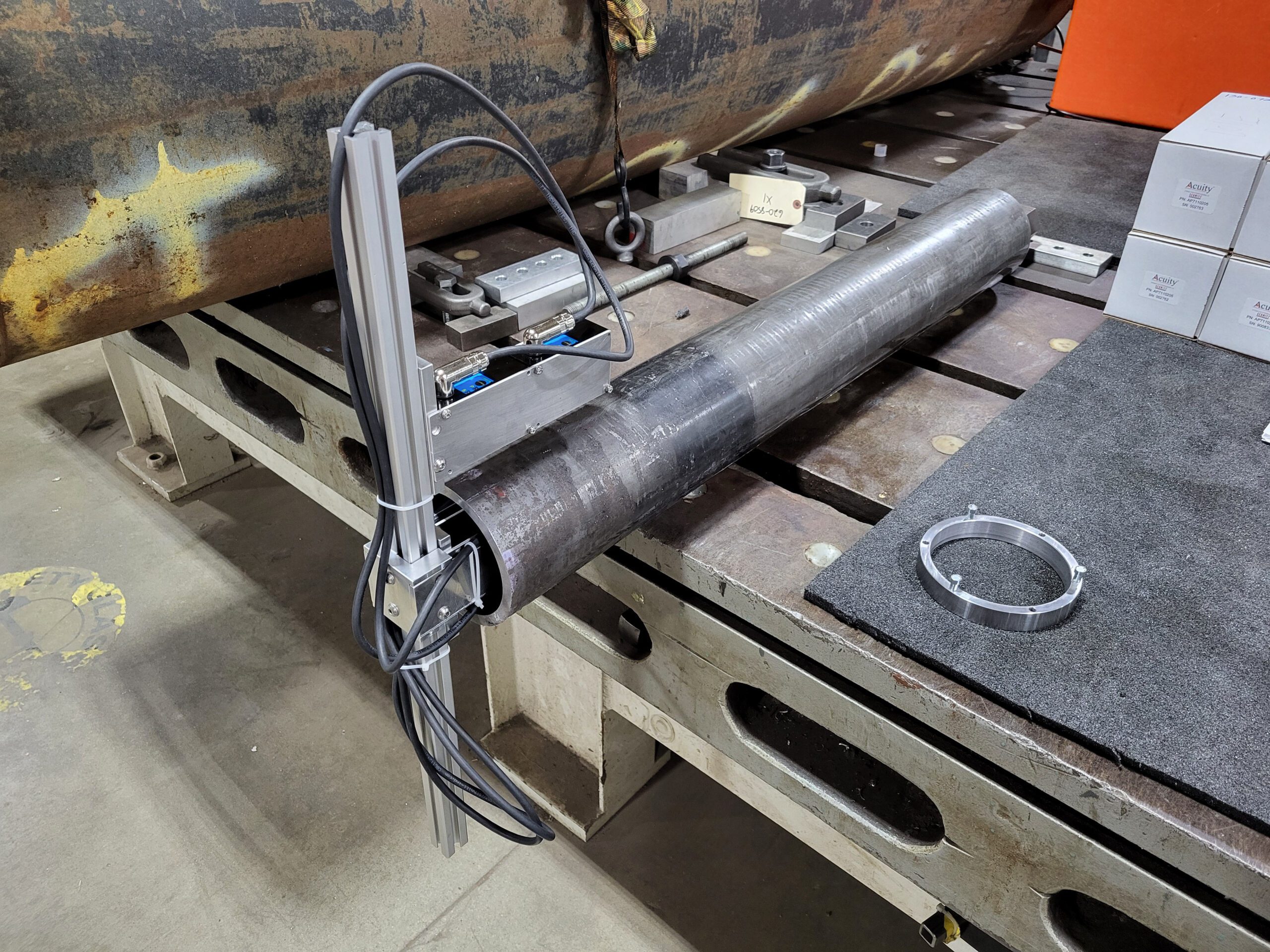

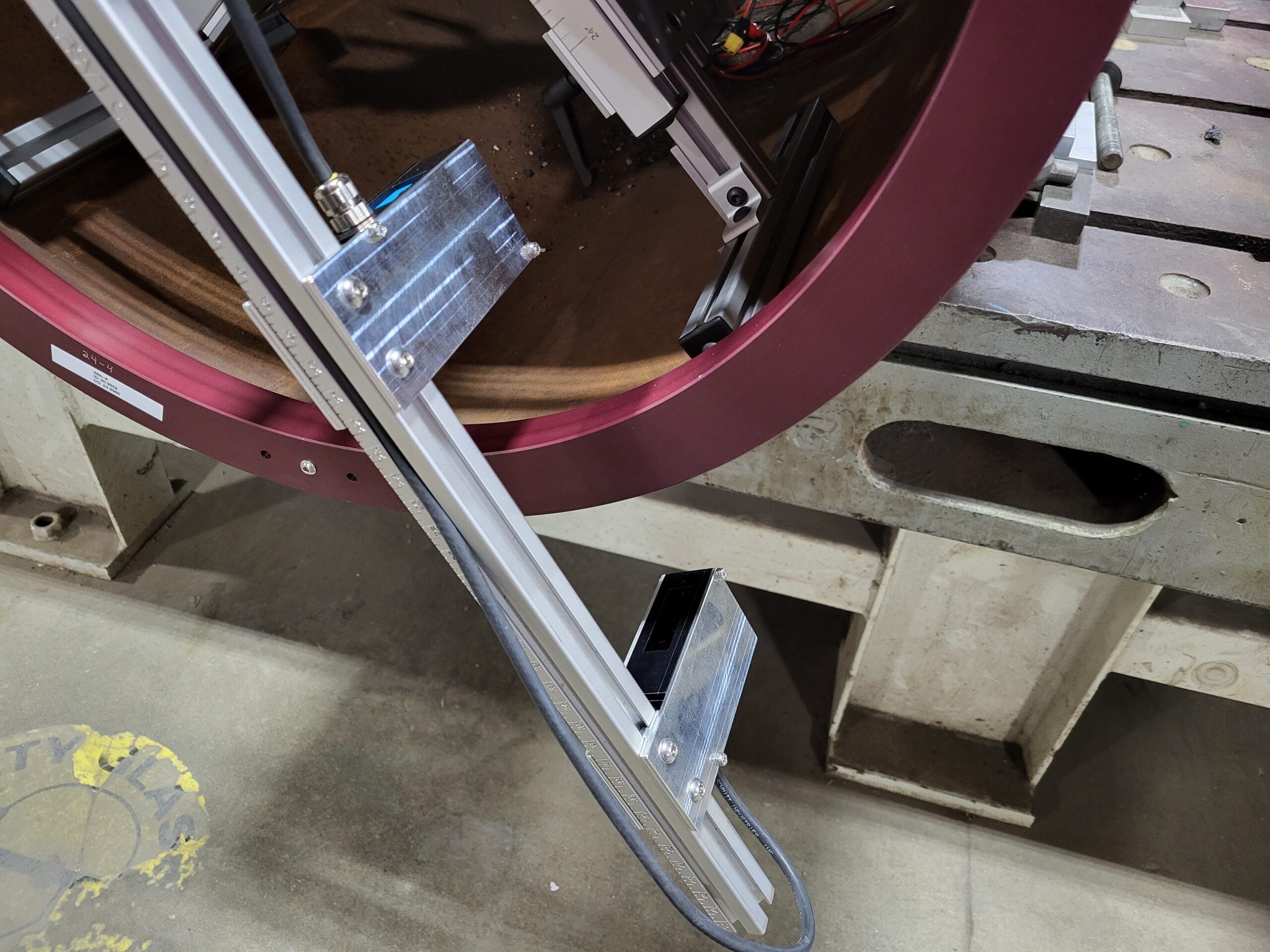

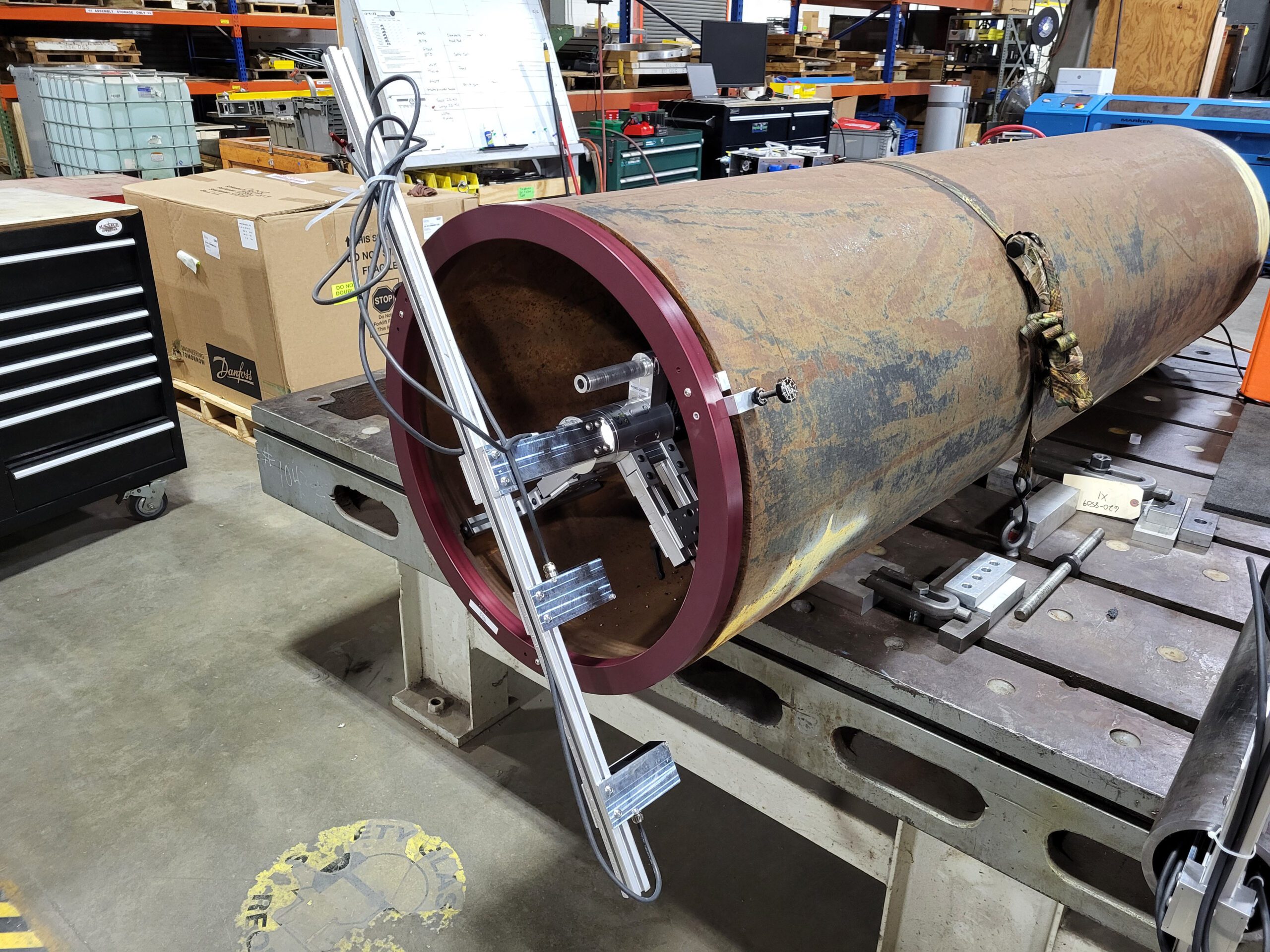

PEMS puts the portable metrology power back in your hands. It’s configurable to a broad range of industrial pipe sizes and types — or we can custom-build to any spec you need. After a quick setup, you’ll be collecting 1,300 laser-point dimensions in just 50 seconds. This lets you verify tolerances as you go and uphold quality standards from the mill to the field.
Maximum Outside Diameter (OD)
56” (1422 mm)
Maximum Inside Diameter (ID)
4.2” (107 mm)
Measurements per Pipe
1300
Accuracy
+/- 0.002” (50.8 μm)
Repeatability
+/- 0.001” (25.4 μm)
Laser Resolution
.0001” (2.54 μm)
Time per End Measure
50 seconds
Power Source
Battery
Weight
20 lbs. (9 kg)
Fill out our contact form and a Mactech representative will be in touch shortly.
